Pinion gear
(22)

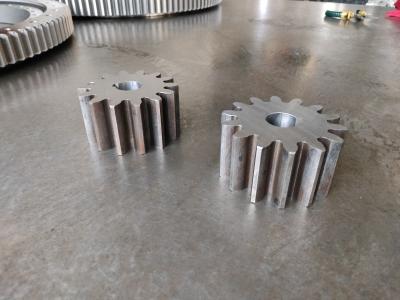

Small Pinion With Teeth 96*84*50mm Accordance With Slewing Ring Bearing
Price: USD500/PCS
MOQ: 10pcs
Delivery Time: 30 days
Brand: JHB
View More
➤ Visit Website

Big pinion matched slewing bearing 420*230*77mm 40pcs teeth
Price: USD500/PCS
MOQ: 10pcs
Delivery Time: 30 days
Brand: JHB
View More
➤ Visit Website

Small Pinion Matched Slewing Bearing 170*130*199mm 18pcs Teeth Quenching
Price: USD1500/PCS
MOQ: 10pcs
Delivery Time: 30 days
Brand: JHB
View More
➤ Visit Website

Pinion gear 96x84x50mm matched with slewing bearing E.750.20.00.B with teeth
Price: USD100
MOQ: 2PCS
Delivery Time: 25 days
Brand: JHB
View More
➤ Visit Website

Pinion gear machine component
Price: USD300
MOQ: 1pcs
Delivery Time: 5-8 working day
Brand: JHB or OEM
View More
➤ Visit Website

Pinion gear 84x26x56mm matched slewing bearing RKS.062.20.0544
Price: USD300
MOQ: 1pcs
Delivery Time: 5-8 working day
Brand: JHB or OEM
View More
➤ Visit Website

Pinion gear 83x25.4x81 mm ,matched with slewing bearing with gear,used for agricultural machinery;
Price: USD100/PCS
MOQ: 1pcs
Delivery Time: 4 Weeks
Brand: JHB or OEM
View More
➤ Visit Website

Pinion gear 64x25x50mm ,matched with slewing bearing with gear,42CrMo material,in stock
Price: Negotiated
MOQ: 1pcs
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Brand: JHB or OEM
View More
➤ Visit Website

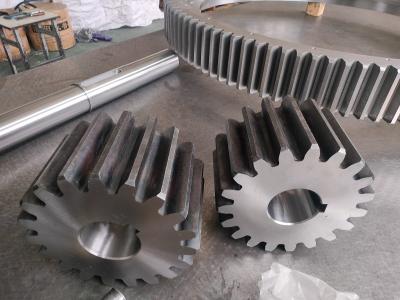

Pinion Gear Teeth 139439 Transmission 266.7mm Diamater Module 12.7
Price: Negotiation
MOQ: 2PCS
Delivery Time: 30 days
Brand: OEM
Gear Teeth transmission 266.7mm diamater Module 12.7 139439 pinion gear teeth data as following: Module:12.7 No of teeth z:19PCS Helix angele:0 degree Hardening and tempering treatment of forging hardness:HB250-290 Material:42CrMo,50Mn Outer diameter:266.7mm(10.5”) Inner diameter:88.85mm(3.5”) Heigh... View More
➤ Visit Website

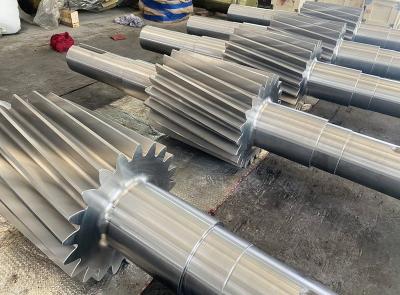

Material 18CrNiMo Gear Teeth Shaft With 25pcs Teeth For Gearbox Reducer
Price: USD500
MOQ: 2pcs
Delivery Time: 35 days
Brand: OEM
material 18CrNiMo Gear teeth Shaft with 25pcs teeth for gearbox reducer The shaft gear details as following: Product name:shaft gear teeth Length:1600mm Outer diameter:625mm Module:20 No of teeth:25pcs Pressure angle:20 degree Raw Material: 42CrMo, 20CrMnTi, 20CrNiMo,18CrNiMo or other required avail... View More
➤ Visit Website

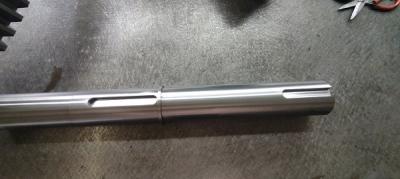

High Speed Rotating Main Spindle Drive With Keyway
Price: USD500
MOQ: 2pcs
Delivery Time: 35 days
Brand: OEM
High speed rotating main spindle drive with keyway Name: main spindle drive with keyway Application:Transmission Size:829x90mm Total length:829mm Package:wooden case Diameter: Per section have different diameter OEM:Yes Material:42CrMo Inspection: Per size will be inspect. Queching&tempering har... View More
➤ Visit Website

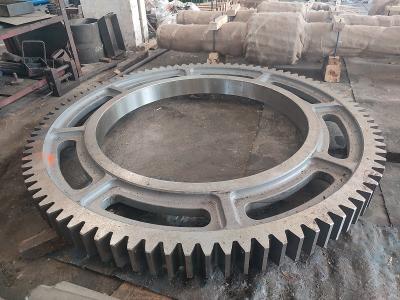

Gear Ring External Teeth No Of Teeth 121pcs Steel 42CrMo Material
Price: Negotiation
MOQ: 2PCS
Delivery Time: 30 days
Brand: OEM
Gear Ring external teeth no of teeth 121pcs steel 42CrMo material Name: Big pinion gear teeth Weight: 422 KGS Material: Steel 42CrMo Finish:Polishing Tooth number:121pcs Gear module 12.7 Pressure Angle:20 Degree Ring and Pinions are mating gear sets that multiplies driveshaft torque, reduces drivesh... View More
➤ Visit Website

Gear teeth pinion Carburizing and quenching heat treatment details
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Gear teeth pinion Carburizing and quenching heat treatment details Carburizing and quenching: For gears with large impact loads, carburizing and quenching should be used. Commonly used materials include low carbon steel or low carbon alloy steel, such as 15, 20, 15Cr, 20Cr, 20CrMnTi, etc. After carb... View More
➤ Visit Website

Double Helical Gear And Herringbone Gear Teeth Details
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Double Helical Gear And Herringbone Gear Teeth Details Double helical gear (double helical gear) Double helical gears are a variant of helical gears characterized by a gap between two adjacent bevel surfaces, each with the same helix angle but in opposite directions. This design eliminates thrust lo... View More
➤ Visit Website

Helical Gear Teeth For The Pipe Tube Mill Rolling Equipment Gearbox Reducer
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Helical gear teeth for the Pipe Tube Mill rolling equipment gearbox reducer Helical gear, also called helical gear, is a part widely used in mechanical transmission, especially suitable for high-speed and heavy-load situations. Such us Pipe Tube Mill rolling equipment gearbox reducer. It is characte... View More
➤ Visit Website

Gear Teeth Pinon Teeth Heat Treatment Overall Quenching Surface Quenching
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Gear Teeth Pinon Teeth Heat Treatment Overall Quenching Surface Quenching Overall quenching: After overall quenching, it is tempered at low temperature. Commonly used materials are medium carbon steel or medium carbon alloy steel, such as 45, 40Cr, etc. The surface hardness can reach 45HRC~55HRC. Th... View More
➤ Visit Website

Gear Teeth Processing Technology And Grinding Level
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Gear Teeth Processing Technology And Grinding Level The tooth profile processing of the gear ring gear is the core of the entire gear processing. There are many processes in gear processing, which all serve the tooth profile processing, and the purpose is to finally obtain gears that meet the accura... View More
➤ Visit Website

Helical Gear teeth advantage and application
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required
Helical Gear teeth advantage and application Helical gear Helical gears have teeth that are inclined to the axis of the gear. For the same tooth width, helical gears have longer teeth than spur gears. Therefore, they can transmit more power between parallel shafts than spur gears. Helical gear appli... View More
➤ Visit Website

Spur Gear Helical Gear for the gearbox transmission
Price: 1000-10000USD
MOQ: 10pcs
Delivery Time: 60 days
Brand: JHB or your required

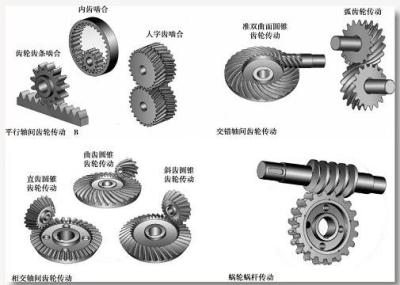

Spur Gear Helical Gear for the gearbox transmission Classification by tooth shape: The tooth shape of gears includes tooth profile curve, pressure angle, tooth height and displacement. Involute gears are relatively easy to manufacture, so among the gears used in modern times, involute gears account ... View More
➤ Visit Website

Stainless Steel Pinion Teeth 96**25*50mm For Food Processing Equipment
Price: 1000USD
MOQ: 2pcs
Delivery Time: 60 days
Brand: JHB or your required
Stainless steel pinion teeth 96**25*50mm for food processing equipment Stainless steel pinion teeth gear details as following: name Stainless steel pinion gear teeth Boundary size 96**25*50mm Outer diameter 96mm 3.78inch size Inner diameter 25mm 0.98 inch size height 50mm 1.968 inch size Ring materi... View More
➤ Visit Website
